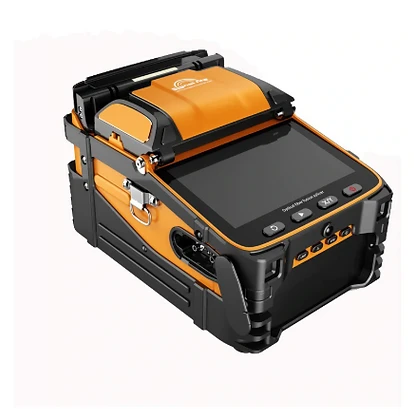

Item Optical Fiber Fusion Splicer
Splicing Time 5s
Display 5 inch TFT color display
Splice Loss 0.025dB(SM) .0.01dB(MM) .0.04dB(DS/NZDS)
Return Loss Better than 60DB
Power Supply Input AC100-240V 50/60HZ Output DC13.5V/4A

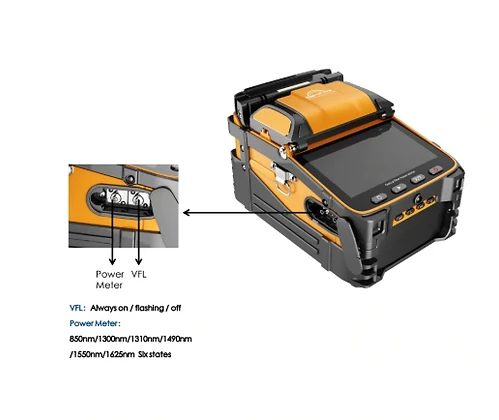

Optical Power Meter Built-in
Model Number AI-9
Applicable Fiber SM MM DS and NZDS
Heating Time 15s
Focus Mode Six motors Auto focus
Control Technology Real-time control and calibration of fusion ARC
Splicing Method Fully automatic or Step by step splicing
VFL Built-in
Certificate CE FCC RHOS ISO
